Eudore Flood Barrier and Aluminum Flood Plank System Reusable Custom sizes For Home Garages Door Gates Pool Residential and Commercial Property
Original price was: 699.00$.499.00$Current price is: 499.00$. yd2
Eudore Series II Flood Barrier Specially improved for garage and various doors. The two-way sealing design of double rubber strips allows the baffle to adjust the height according to the actual flood conditions.Applicable to Doorways and Window Wells, Loading Docks, Basement Stairwells, Perimeter Opening Protection, Garages and Ramps, Flood gates for passageways, Commercial buildings, Power equipment
19 in stock
Description>>>
- With a double sealing rubber strip design, it offers double waterproof protection. Removed the three fixing screws from the surface and relocated them to the inside. Since there are no external screw holes,the waterproof effect is improved.
- Designed according to force and mechanics,the material is high-quality aluminum(Twice as heavy as competitors),with a double-cavity integrated structure and one-piece die-casting,which is strong and durable.

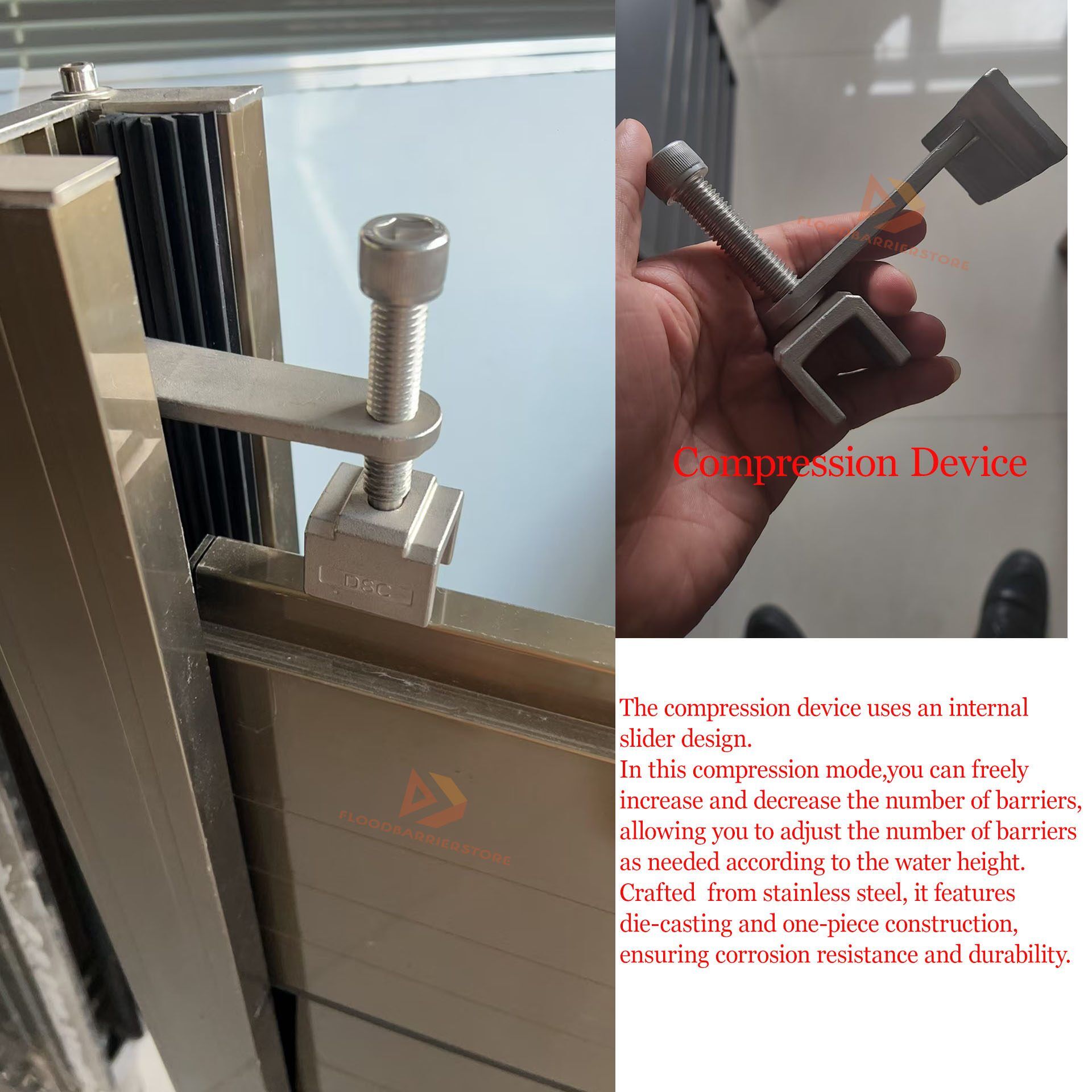

- The compression device uses an internal slider design. In this compression mode, you can freely increase and decrease the number of barriers, allowing you to adjust the number of barriers as needed according to the water height. Crafted from stainless steel, it features die-casting and one-piece construction, ensuring corrosion resistance and durability.
- Designed according to force and mechanics,the material is high-quality aluminum,with a double-cavity integrated structure and one-piece die-casting,which is strong and durable.

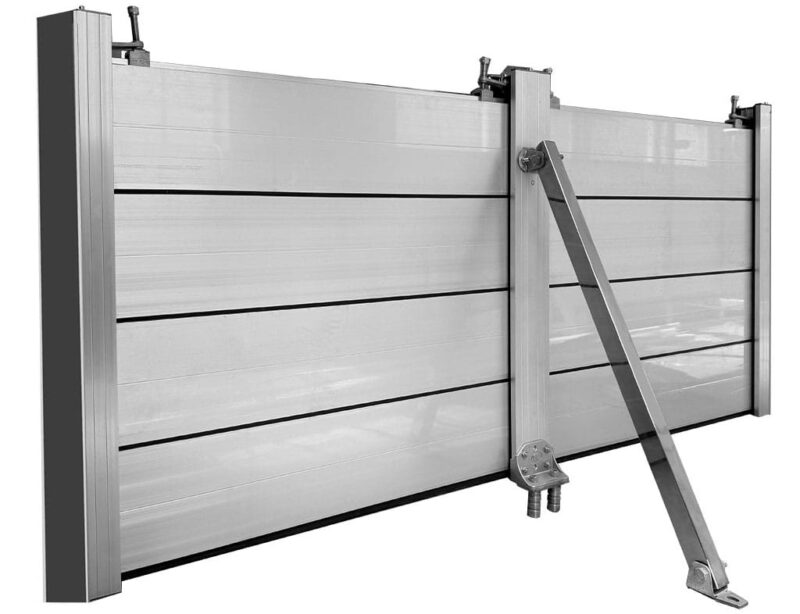

- Eudore aluminum flood barriers utilize a series of aluminum planks (“logs”) that are slotted into support posts mounted on either side of the opening to be protected.Planks have Rubber EPDM seals on the underside and posts have Rubber EPDM in the slot, which helps create a durable seal off against water infiltration.For added wind and debris resistance, flood gate planks are tightened against the seal within the posts and bracketed down from the top, so that they stay in place in even the most extreme situations.
- Eudore Flood Barrier meets international advanced standards and is suitable for projects with very high quality requirements, such as government projects and large commercial projects. Eudore Series II has become the designated supplier of Shenzhen Metro in China.
Eudore Flood Barrier Features
- Modular system: A modular, stackable system makes it easy to be installed in specific flood-prone areas of your project, including window openings, across doors and storefronts, as well as an entire perimeter defense against flooding. Because of its modular design, it can run the length of any sized structure with a maximum height of 63inch and can accommodate slopes of 20 degree.
- Easy to install: With a simple installation process, almost anyone can secure their home or business against floods and water damage with our flood barriers. Thanks to the customisable width and two variations of securing mechanisms, our flood barriers will ensure your investments remain safely protected.
- “C” shaped support:The system comprises of a series of “C” shaped support posts and hollow aluminum beams that anchor the flood barrier system. These beams stack on edge with each other with a tongue and groove connection. The support posts that attach to the building structure can be installed on a removable basis minimizing the aesthetic impact on the building.
Built to last:We Flood Barriers have been specifically engineered to provide a long lasting product at an affordable price. Our flood barriers are made from 6063-T5 Construction Aluminium and 304 Stainless Steel. Flood barriers will ensure your home or business is flood proof for years to come. - Customized size:Flood wall height customized to your needs，Up to 200in Wide Planks w/Center Posts for unlimited lengths.
- Easy storage:Custom storage shelves are available to ensure Flood Logs are organized and ready to be deployed when needed.
- This flood gate system is also ideal for areas where high wind or debris is expected as the fixed posts and clamped planks are durable, rigid and designed to handle heavy stresses.
How to Install Eudore Flood Barrier?
>>>Eudore Flood Barrier Installation Video
>>>Eudore Flood Barrier Installation Manual
- Choose between inside or outside mounted posts, depending on your specific installation environment, such as your threshold construction, window or door configuration, wall construction, or aesthetic preference..Outside wall installation width = open size + 8 inches,Innerwall installation width = open size.
- The installation is very simple, you just need to drill holes and fix the screws.The center column is only required if the width exceeds 200in.
- The Remove is completed in 10 minutes, and you can keep the screws when Remove. You can quickly install it next time you need it.
- We have prepared all the accessories for you, so you don’t need any other accessories. It can be installed on any ground (sand, brick, stone, bump, wood).
Flood Barrier Mounting Options:
Eudore Series II Documentation and Resources
Eudore Flood Barrier Related Videos
Parameter>>>
| Weight | 35 kg |
|---|---|
| Manufacturer | Floodbarrierstore |
| Model Number | Eudore Series II |
| Material | Extruded Aluminum, Stainless Steel, Rubber Gasket |
| Warranty | 5 Years |
| Height | 8in-181in |
| Length | Cut to Length |
| Accessories | Screws, Rubber Seal |
| Middle Post Needed | Opening ≥ 5000 mm |
| Installation | By Screws, within 10 Minutes |
| Removable | Yes. Removable When Necessary |
| Color | Silver Gray |
Reviews (3)
3 reviews for Eudore Flood Barrier and Aluminum Flood Plank System Reusable Custom sizes For Home Garages Door Gates Pool Residential and Commercial Property
1-3 of 3 reviews
Add a review
Eudore Flood Barrier and Aluminum Flood Plank System Reusable Custom sizes For Home Garages Door Gates Pool Residential and Commercial Property
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
project case
Eudore Flood Barrier project case display (only a small part is shown)
POWER STATION FLOOD BARRIERS
Time: July 19, 2023
Holmes Beach, FL 34217United States
Commercial Building Flood Barriers
Time: July 10, 2023
Naples, FL United States
Safety fence, isolation fence
Time: Dec 14, 2023
SAINT AUGUSTINE, FL United States (US)
Subway entrance fence
Time :June 13, 2024
Shenzhen Baiwanggang
Underground passage entrance
December 18, 2023
Yitian Garden, Futian District, Shenzhen
Road entrance
Date:April 22, 2024
Shenzhen Futian Gangxia
Need Support? Please contact us immediately
Q & A (8)
Q & A
Ask a question
What is the depth needed for the inside mounting bracket?
There are two ways to install it internally:
1. Embed it into the wall (55mm),
2. Install it directly on the internal wall
(0)
(1)
Add an answer
Can the side posts be removed from the doorway, instead of leaving them up year round
Yes, it is fixed with screws, you can remove it
(0)
(1)
Add an answer
How many sq yards to get a discounted price? Possible over 5000 sq yd purchase.
If your order reaches 5000sq/yd, we can give you a discount. We will email you the details.
(0)
(1)
Add an answer
How would I attach the barrier to my gym doors. There are 3 X 36" doors and 1 X 72" double door. The posts would need to attach to the walls
We configure two side posts and fix them to the wall with screws, please watch the video
https://customer-mryzawiji494k5ke.cloudflarestream.com/f49bf7592f92a7452c9164568e44ffac/watch
(0)
(1)
Add an answer
Is it cheaper for 3 ft opening
Than a 12’ opening
I have 3- 12’ openings and 3 -3’ openings
The price is determined by the area, (height*width), our price is 499.00$. /sq.yd
(0)
(0)
Add an answer
