Aluminum Flood Barrier
Removable Aluminum Garage Door Flood Barrier – Custom Size Stop Log System
Original price was: $699.00.$499.00Current price is: $499.00.
Eudore Series II Aluminum Flood Barrier – Upgraded design for garages and doorways. Dual rubber seals provide two-way waterproof protection, with adjustable height for different flood levels. Ideal for doorways, basements, garages, ramps, loading docks, and commercial entrances.
- 15-year warranty
- 3,000+ U.S. installations
- 2.5× heavier aluminum

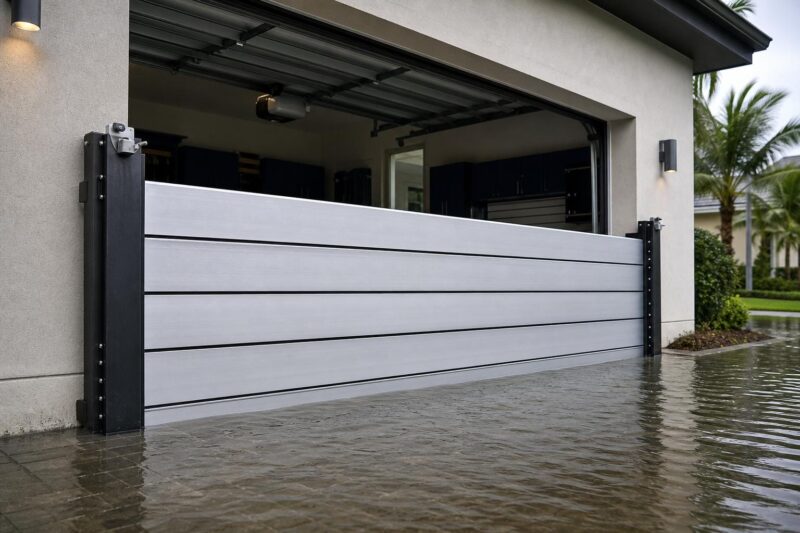

This removable aluminum garage door flood barrier is a stop-log system custom-sized to your opening. Panels slide into side channels and compress against EPDM seals, then are removed after the flood risk passes.
More than a threshold strip
Why add a removable flood barrier to a garage door?
A garage-door weather seal and a removable flood barrier serve different purposes. Review the garage flood protection guide to compare opening requirements before selecting this product.
Protect what sits lowest
Vehicles, electrical tools, storage, HVAC equipment and connected interior walls can all be exposed through the garage opening.
Create a structural barrier
Stacked aluminum stop logs form a rigid wall instead of relying on a low flexible strip at the threshold.
Keep daily access practical
Panels are removable, reusable and stored separately until severe weather is forecast.
Start with fit—not a catalog guess
Will this flood barrier work for your garage door?
Product selection starts with the opening. Confirm the clear width, desired water-protection height and the surface where the side channels mount before choosing a configuration.
- 01Clear opening width
Measure the usable opening between the finished mounting surfaces—not the garage-door track or decorative trim.
- 02Required protection height
Tell us the target flood height you need. Final performance depends on the specified opening and site conditions.
- 03Wall, jamb and floor condition
Photos of both jambs and the threshold help us assess outside or inside mounting; additional site information may be needed.
Eudore Series II engineering
How the aluminum panels, side posts and seals work together.
Water resistance depends on the complete system: aluminum rigidity, side-post geometry, seal material and consistent compression—not simply the appearance of the front panel.

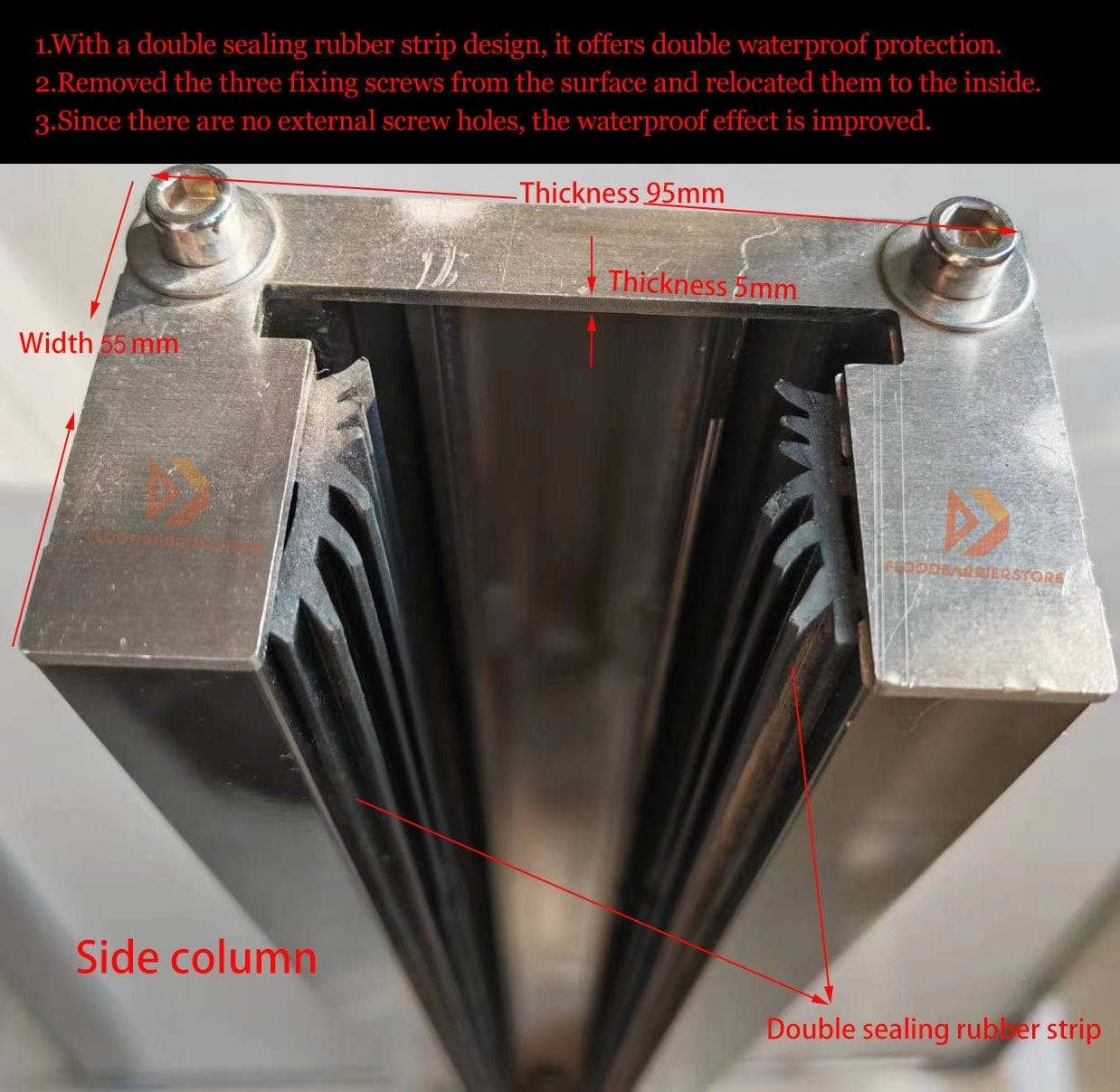

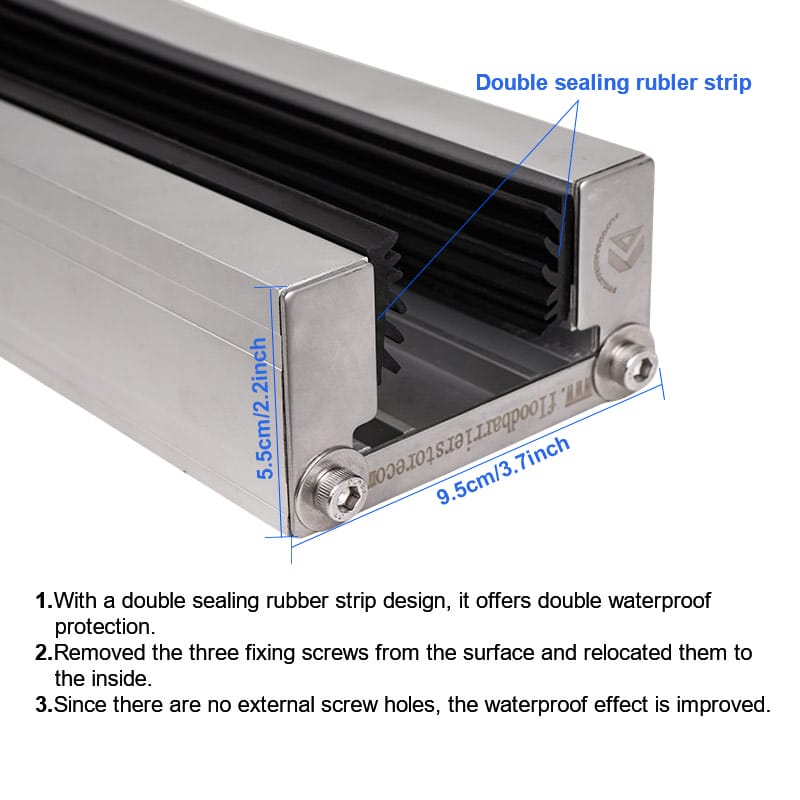

Hidden fixing surface
No exposed front screws through the sealing face. The design reduces potential entry points and may be recessed into the wall when the site allows.

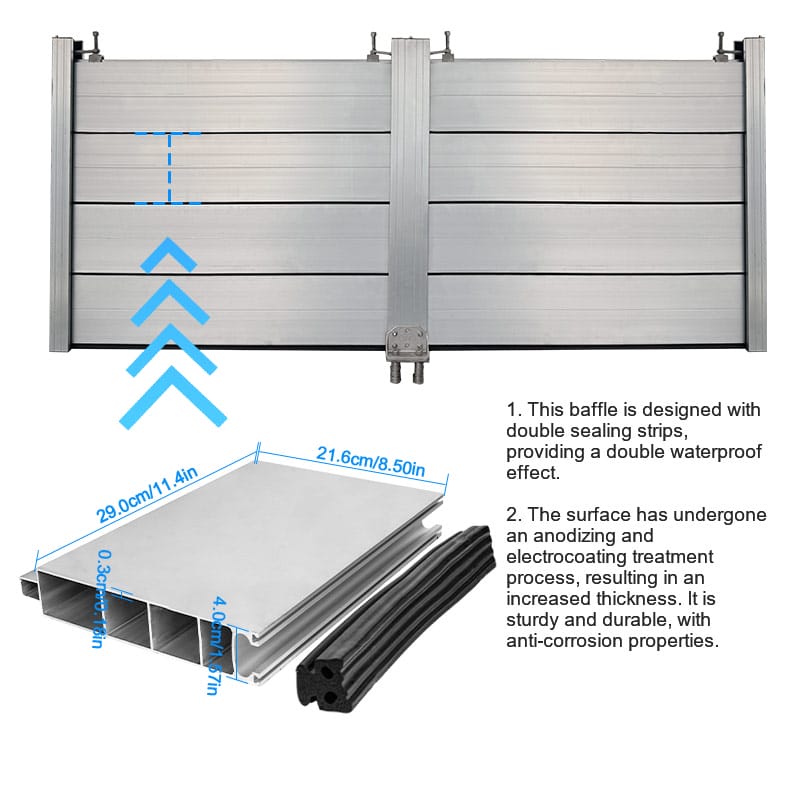

New 6063-T5 aluminum
Aluminum stop-log panels fit into the side posts to form the removable barrier. Confirm the specified panel span and support requirements for your opening.

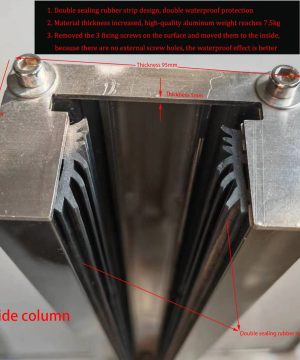

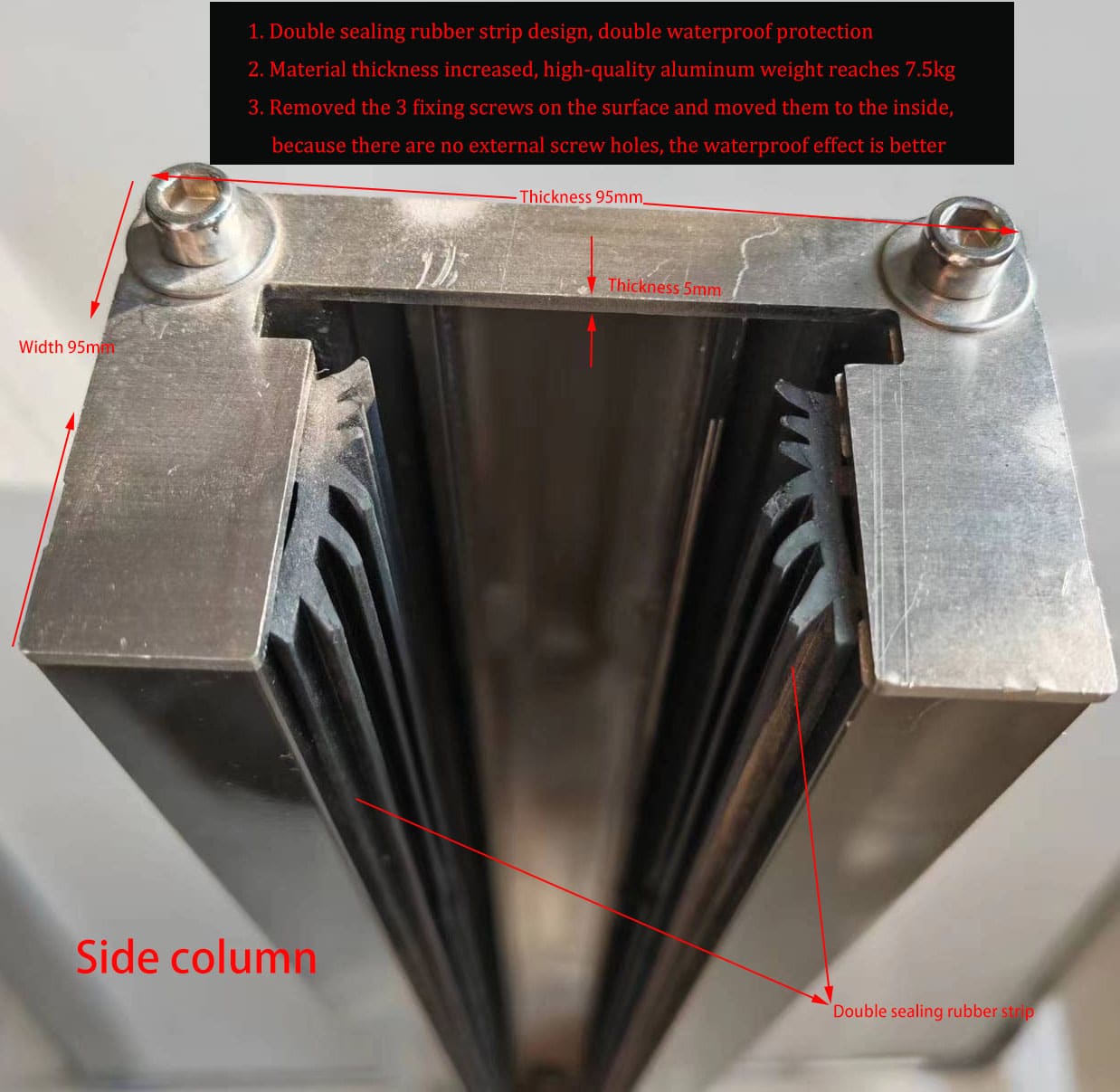

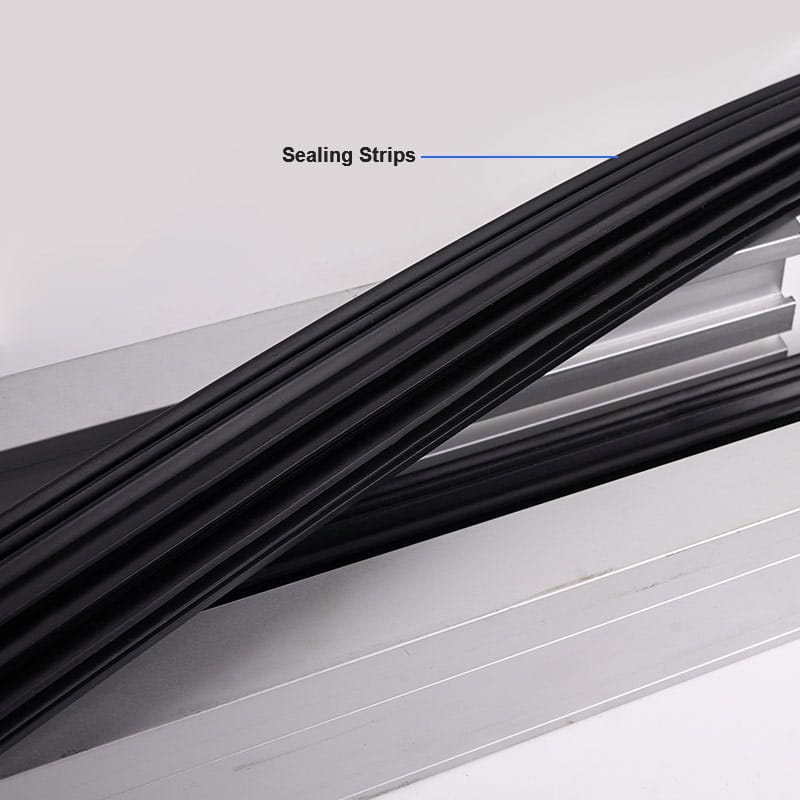

Dual gear-profile seals
Interlocking EPDM sealing ridges increase contact area, distribute compression and provide a secondary sealing ridge.
Automotive-grade EPDM
Weather-resistant elastic rubber is selected for recovery and flexibility through repeated deployment and outdoor exposure.
Custom fit, not guesswork
A custom garage flood barrier designed around the actual opening.
The review starts with the clear width, target flood height and a straight-on photo. It then considers the wall, floor, door hardware and required panel span before a configuration is recommended.
Choose the mounting approach that fits the garage
These are configuration possibilities, not products to select without a site review.
Important: a final configuration is not determined by width alone. Wall and floor condition, access needs and door hardware are part of the decision.
Reported DSC-095 Test Results
Three conditions from the commissioned report are summarized here for quick review. Open the original PDF above for the complete test method, sample details and limitations.
Final protection height and performance require opening-specific configuration, suitable structural conditions and correct installation.
Reported Results at Three Test Heights
Report BB1JZL-20250032 · Sample WBa20250423002a1 · 6063-T6 · 7,000 × 1,200 × 40 mm
The report concludes that the recorded column and water-deflector stresses were below 215 MPa and the recorded column deflections were below 5 mm for the tested sample and conditions. Opening-specific engineering and installation remain necessary.
Real installation evidence

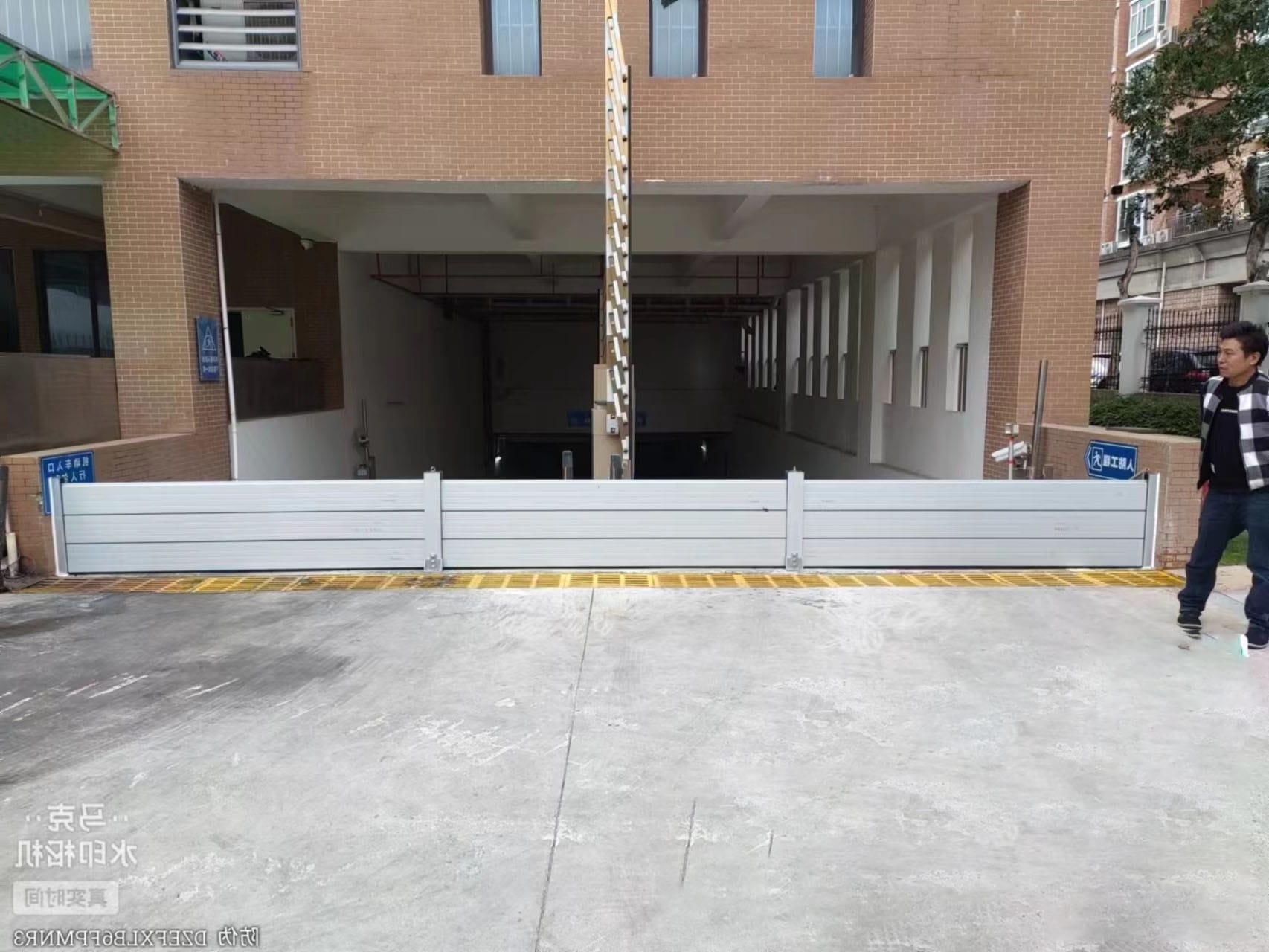

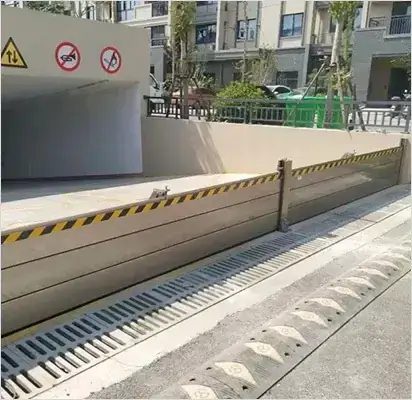

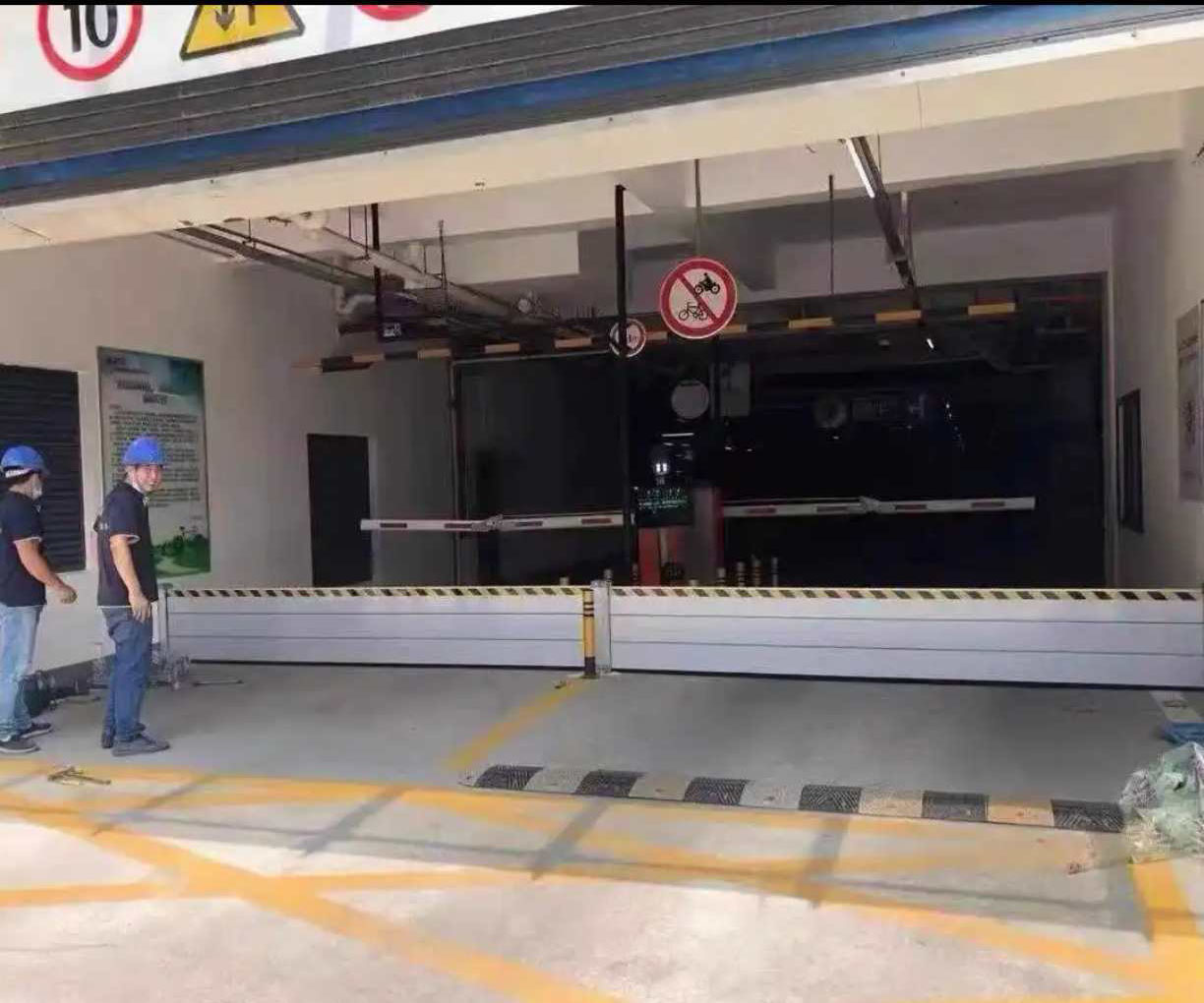

Garage and parking openings require different configurations—not a generic answer.
Review the flood barrier installation projects alongside the examples below. Compare opening width, mounting surfaces and access needs; another installation does not establish performance at your property.

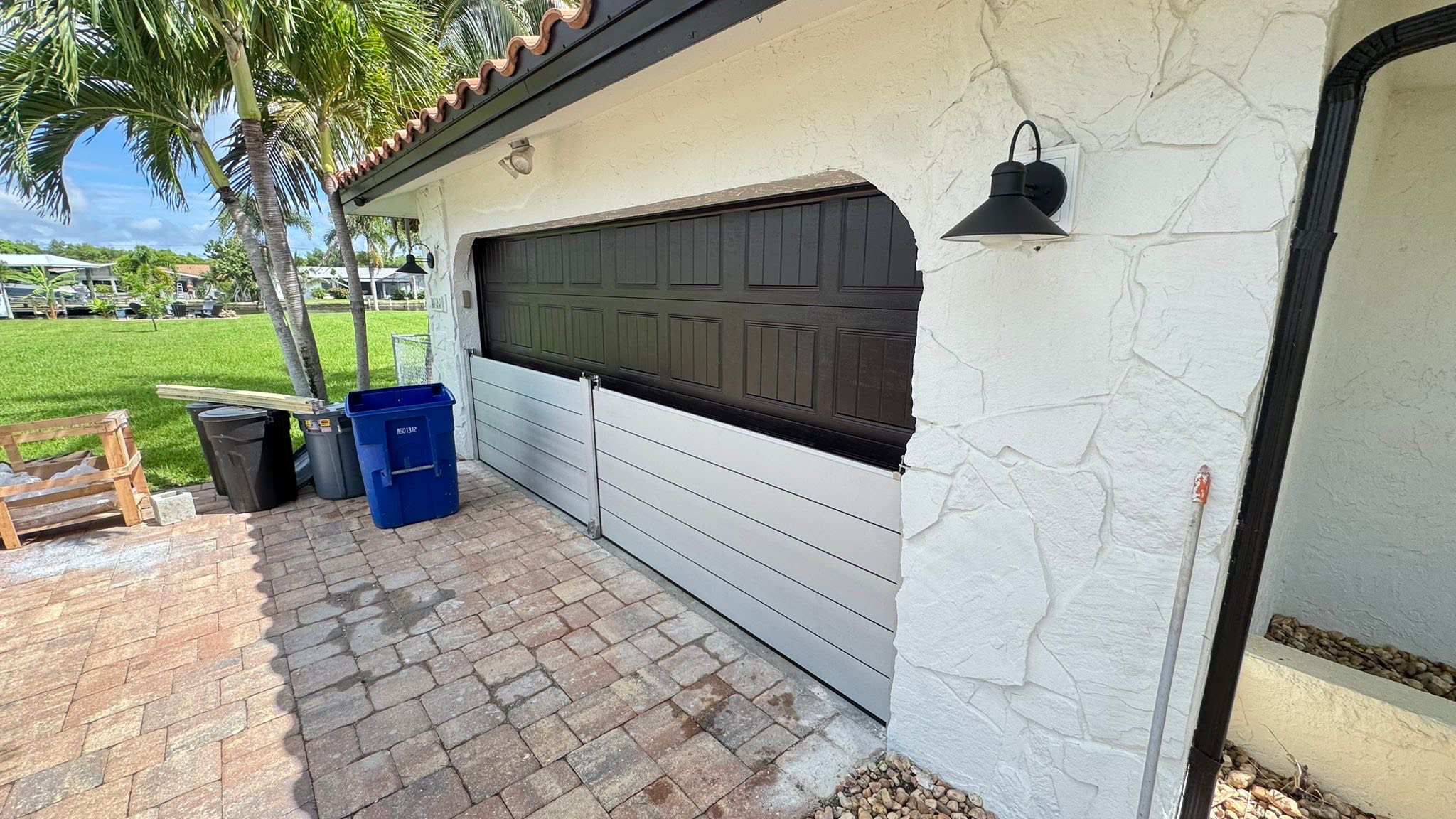

Garage flood protection
Custom removable aluminum barrier supplied for a residential garage opening exposed to floodwater risk.
Daily access preserved
Panels are stored separately when protection is not needed, leaving the garage available for normal vehicle use.
Mounting conditions matter
Wall, floor, door hardware and target height must be reviewed before the final system is specified.
FACTORY-DIRECT
See Where Eudore Flood Barriers Are Made
Flood Barrier Store / Eudore works directly with the Shenzhen manufacturing team for aluminum processing, custom dimensions, quality control, lead times and project-specific support.
Aluminum Flood Barriers Factory Showcase
See the manufacturing environment, finished barrier inventory and production workflow behind the made-to-order system.
Open on YouTube ↗
Precision Cutting & Custom Flood Barrier Sizing
Watch aluminum components being processed for the custom dimensions required by residential and commercial openings.
Open on YouTube ↗
*Where applicable, based on order specifications. CE certification, RoHS documentation and third-party test reports are available for review.
Choose the right protection level
Is a removable aluminum garage flood barrier right for your property?
This system is intended for meaningful rising-water risk. It is not always the correct answer for light rain, a minor drainage defect or a location where no one can deploy the panels.
A strong fit when…
- Your garage is below grade or at the bottom of a sloped driveway.
- Floodwater can rise beyond a low threshold strip.
- You need reusable protection while keeping the opening clear between events.
- The opening can support engineered side channels and compression.
Review another solution when…
- The issue is only small amounts of wind-driven rain.
- The mounting surface is damaged or unsuitable.
- No one can deploy panels before an event.
- You need to assess automatic flood gate options because manual deployment is unsuitable.
From measurement to flood-ready
How to measure and order your garage door flood barrier.
Start with measurements and site photos, then confirm the component scope, mounting requirements and quoted configuration before ordering.
Measure the opening
Follow the flood barrier measurement and installation instructions. Send clear width, target height and photos of both jambs and the threshold.
Confirm configuration
Review installation method, component scope and any opening-specific constraints before production.
Place the order
Check that the selected dimensions, mounting method and included components match the agreed configuration and final quoted price.

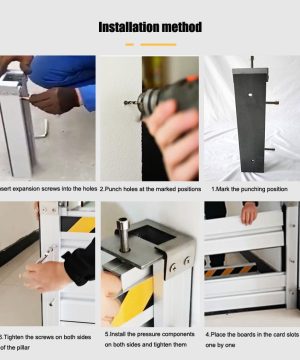

Install and deploy
Permanent components are installed once; panels are stored until flood protection is needed.
Verified owner feedback
What owners say after buying the aluminum flood barrier.
Consider owner feedback alongside your own mounting conditions, installation requirements and deployment plan.
This is one of the best solutions on the market right now to protect your property against floodwater.
Frank TenzVerified owner · 5/5Very professional and knowledgeable company. The product is high quality, well built and functional.
Artan K.Verified owner · 5/5Well-made product and fair value. I am pleased with the result and would recommend the system.
David R.Verified owner · 4/5Garage barrier FAQ
Garage door flood barrier: ordering and installation questions.
Can I use my garage door and driveway with the barrier installed?
When the removable panels are stored, vehicle access can resume, subject to the clearance left by the permanent mounting components. With the panels deployed across the opening, vehicles cannot pass through. Before ordering, confirm that the proposed mounting position leaves room for the garage door, tracks, moving hardware and safety sensors. Send photos of the door in both its open and closed positions, together with the opening dimensions, for a configuration review.
What measurements do you need?
Provide the clear opening width, desired protection height, and straight-on photos showing the door frame, nearby walls, floor and any hinges or hardware.
Does every double garage need a center post?
The need for a center post depends on width, protection height, expected load and system configuration. Final selection must be confirmed for the opening.
Will an aluminum garage flood barrier stop all water?
No opening barrier should be treated as a guarantee against all water entry. Performance depends on the specified configuration, wall and floor condition, installation, seal compression and maintenance. Water may also enter through other parts of the building.
What should I check about delivery, returns and warranty?
Read the shipping information, return and refund policy and warranty terms. Confirm how these apply to your custom-sized order before purchase.
Tell us about your opening
Share the opening type, clear width, target flood height and location. Our team will review the details and recommend the right configuration.
Measure the clear opening width and target protection height. Include the jamb and floor condition in your photos.
