Aluminum Flood Barrier
Custom Aluminum Flood Barrier — 55.12–78.74-Inch Protection Height
Original price was: $1,299.00.$899.00Current price is: $899.00.
Custom reusable aluminum flood barriers for 55.12–78.74-inch protection heights, tailored to garage openings, warehouse entrances and property boundaries.
- 15-year warranty
- 3,000+ U.S. installations
- 2.5× heavier aluminum
Start with your projectMatch the height, opening and support layout to your site.
EUDORE · CUSTOM ALUMINUM FLOOD PROTECTION
A modular flood barrier for 55.12–78.74 in protection heights.
Build the barrier around your opening, not the other way around. Eudore combines removable aluminum panels, side posts and project-specific supports for entrances and longer boundaries. The final arrangement depends on the required height, width and mounting conditions.
55.12–78.74 in
Select the required protection height for your project. A 78.74 in arrangement must be reviewed as a complete panel, post, fixing and support system.
Custom-fit configuration
Provide the clear opening width or total boundary length. Wider runs may need center posts and braces positioned to suit the site.
Remove and store between events
Panel sections can be removed when no longer needed. Allow for safe handling, storage and the specified permanent posts and fixings.
SPECIFICATIONS
Your 55.12–78.74 in system at a glance.
55.12–78.74 in
Custom protection height for the specified opening.
2.76 in
Overall panel thickness.
3.62 in
End supports for the specified opening.
Made to measure
Configured for the opening or boundary length.
Project-specific
Positions and supports follow the approved layout.
Confirmed with your order
Check the panel, post and fixing list in your agreed configuration.
THE 55.12–78.74 IN SYSTEM

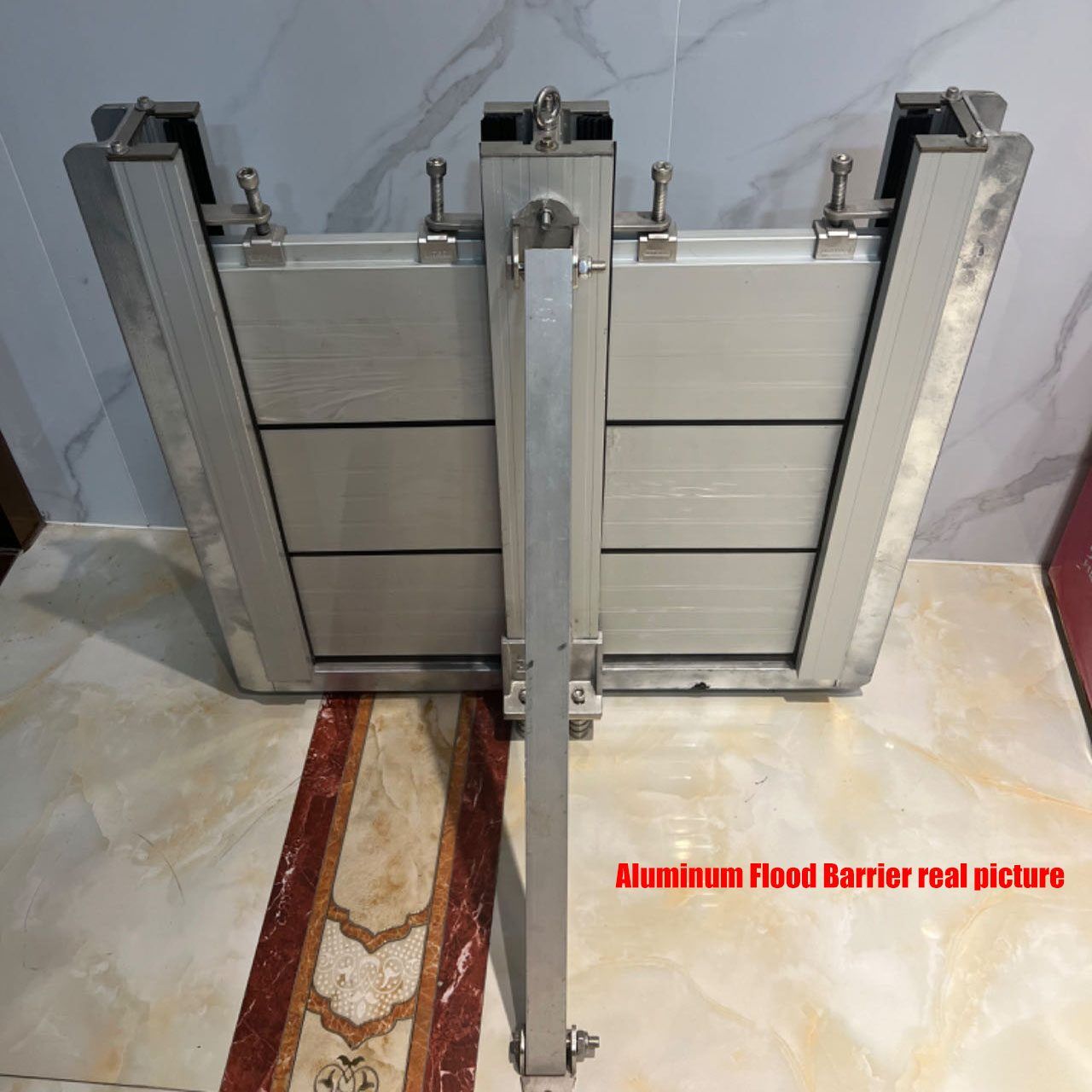

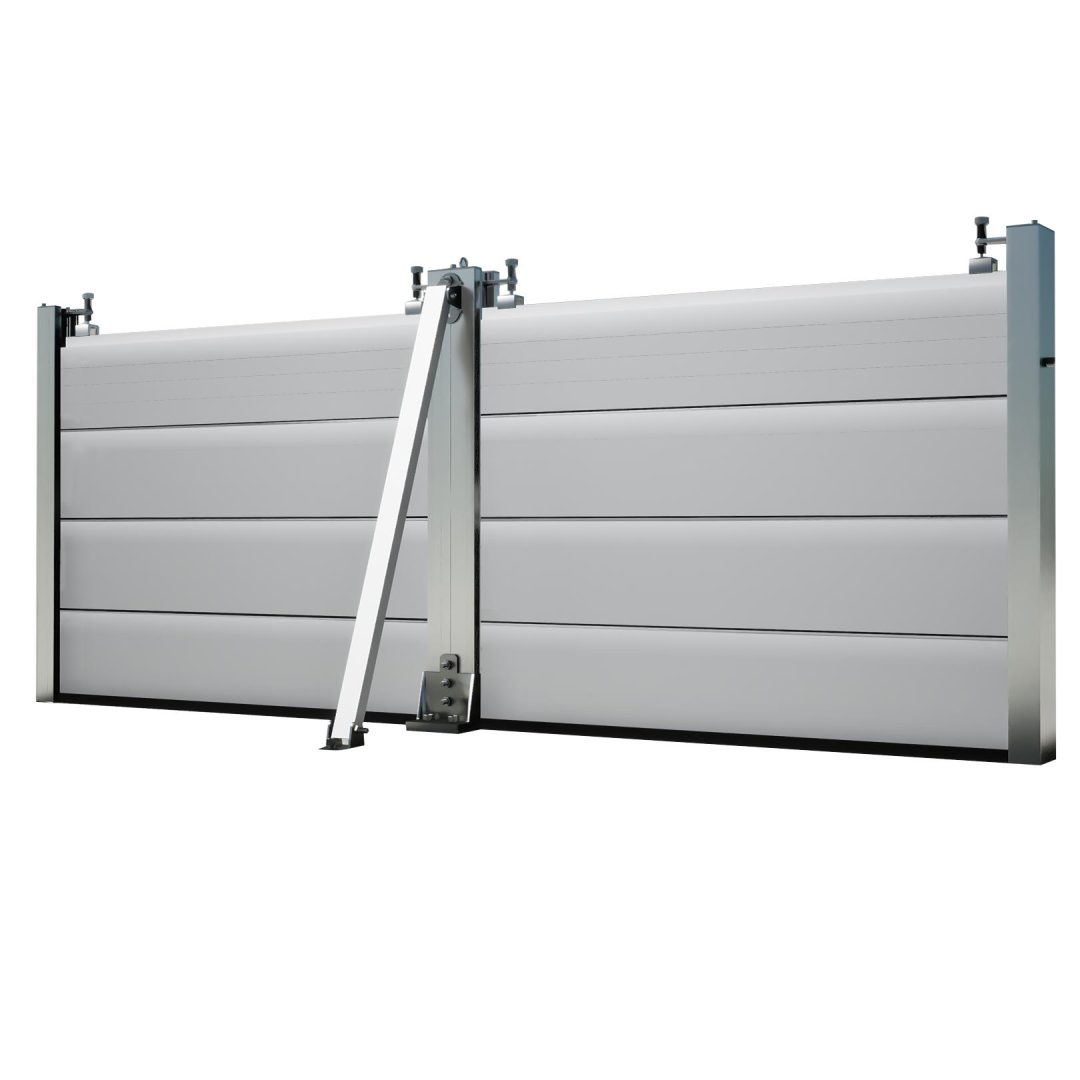

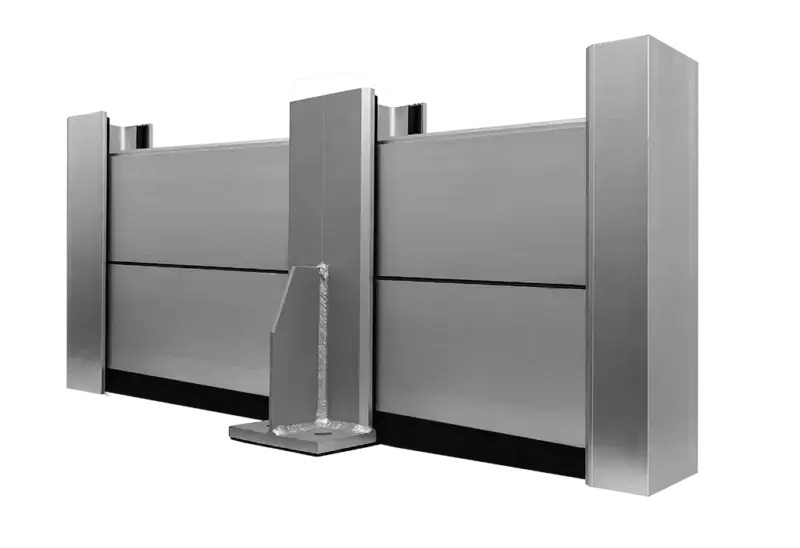

Panels and posts designed to work together.
Choose the complete arrangement around the required protection height, rather than selecting the panel alone.

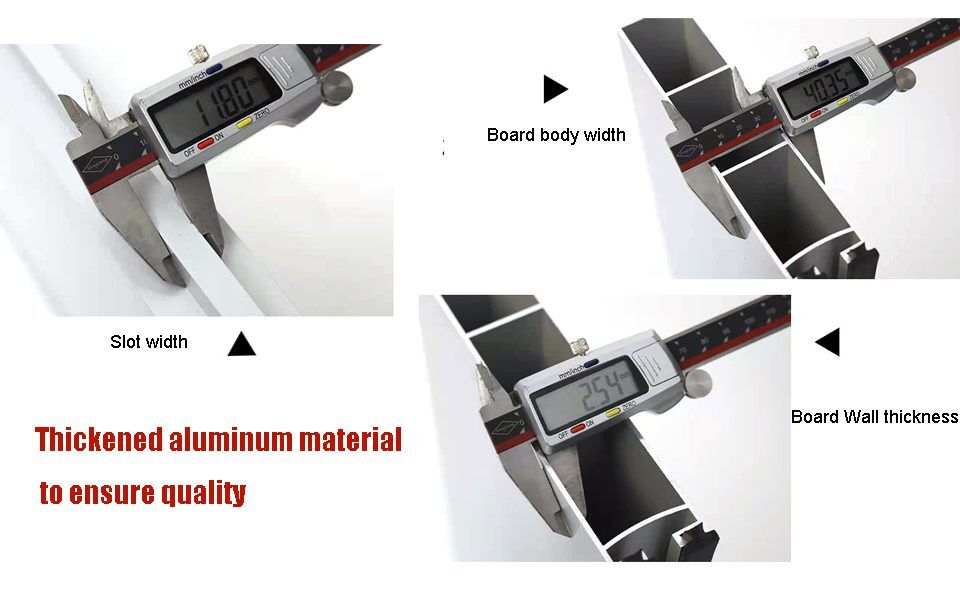

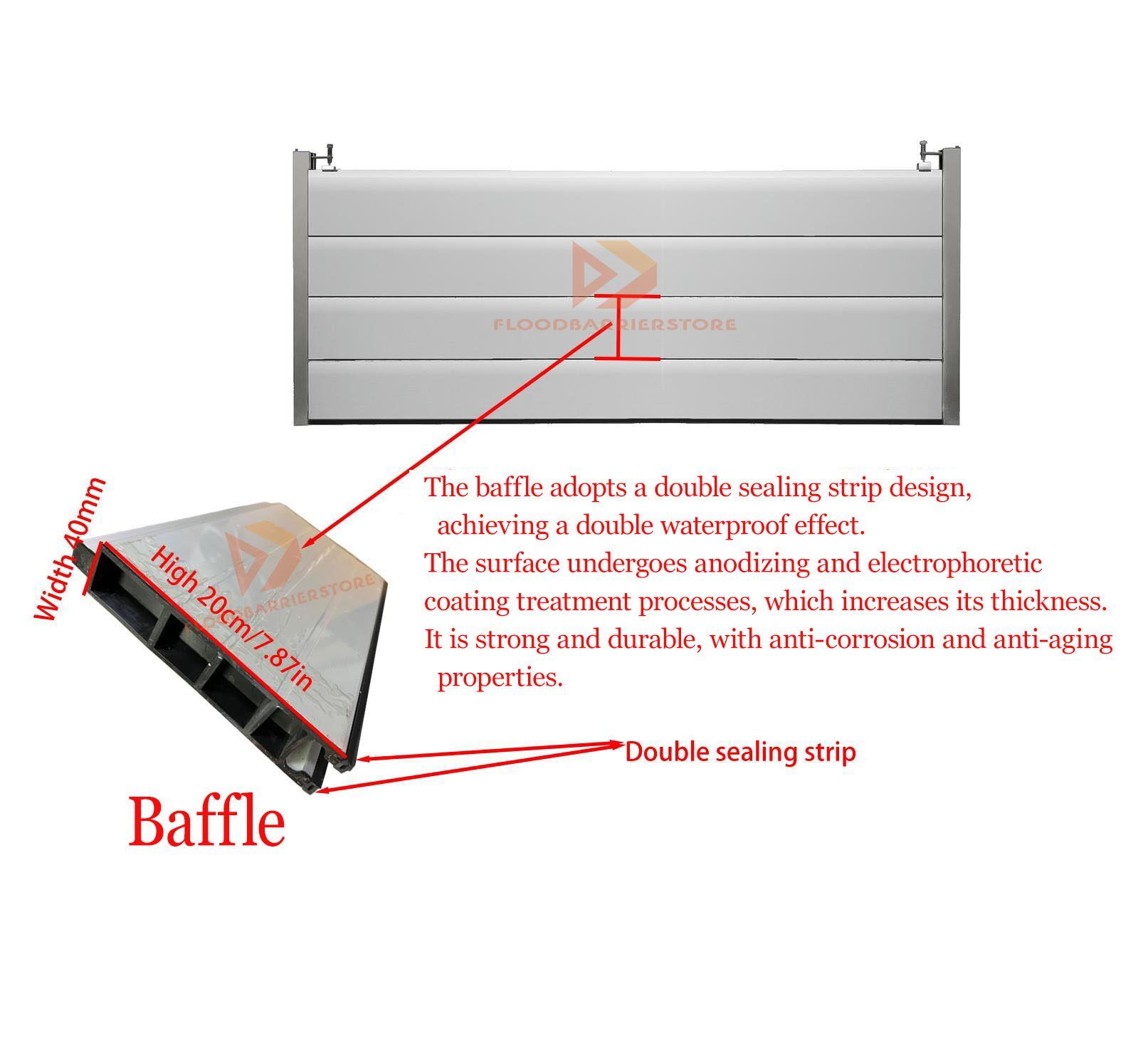

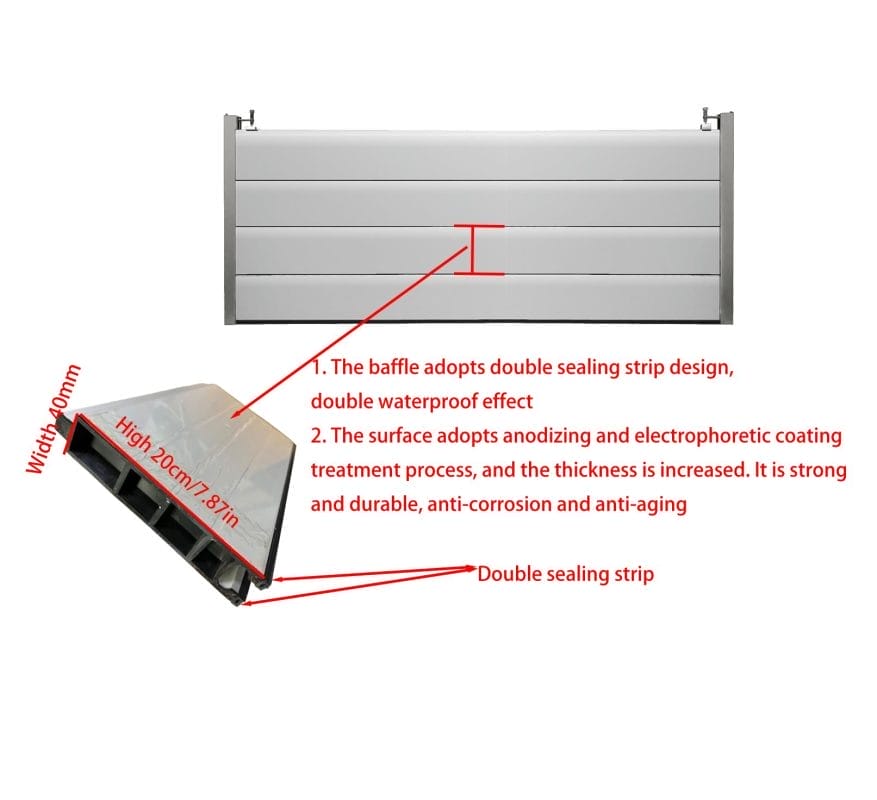

2.76 in aluminum panels
2.76 in overall panel thickness. Removable sections stack to form the specified protection height.

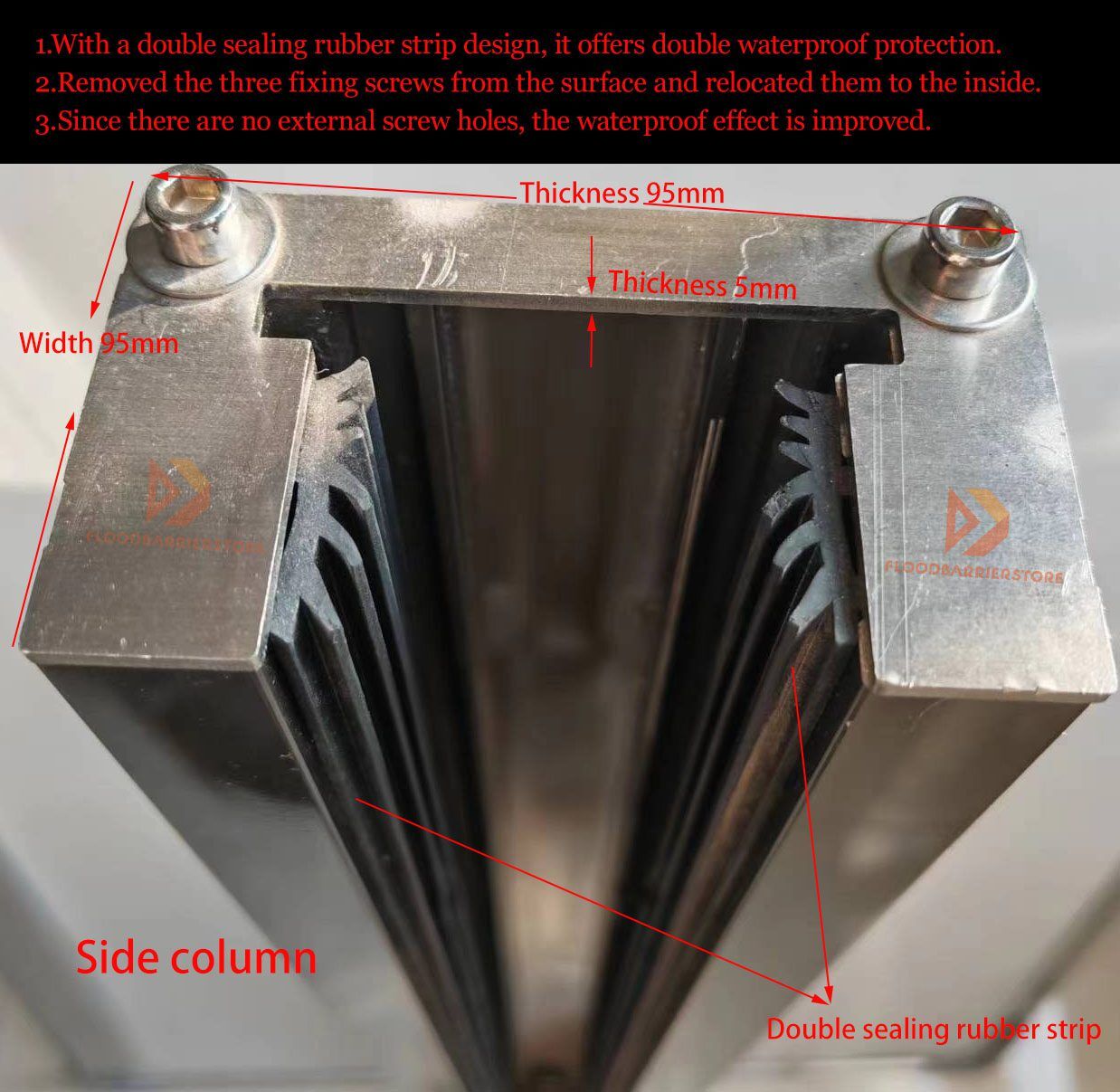

3.62 in wide side posts
End supports connect the panel arrangement to the opening. Mounting details follow the site layout.

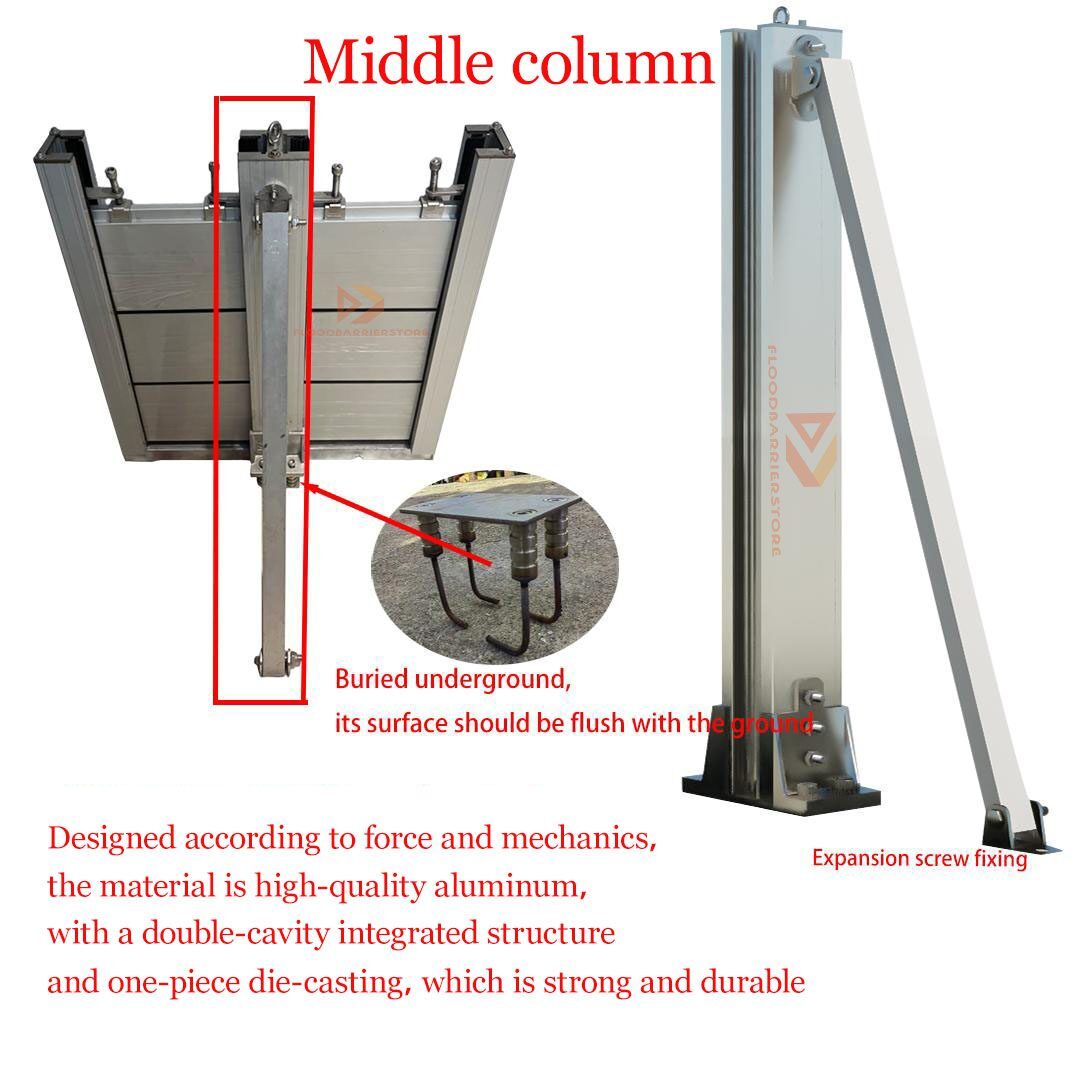

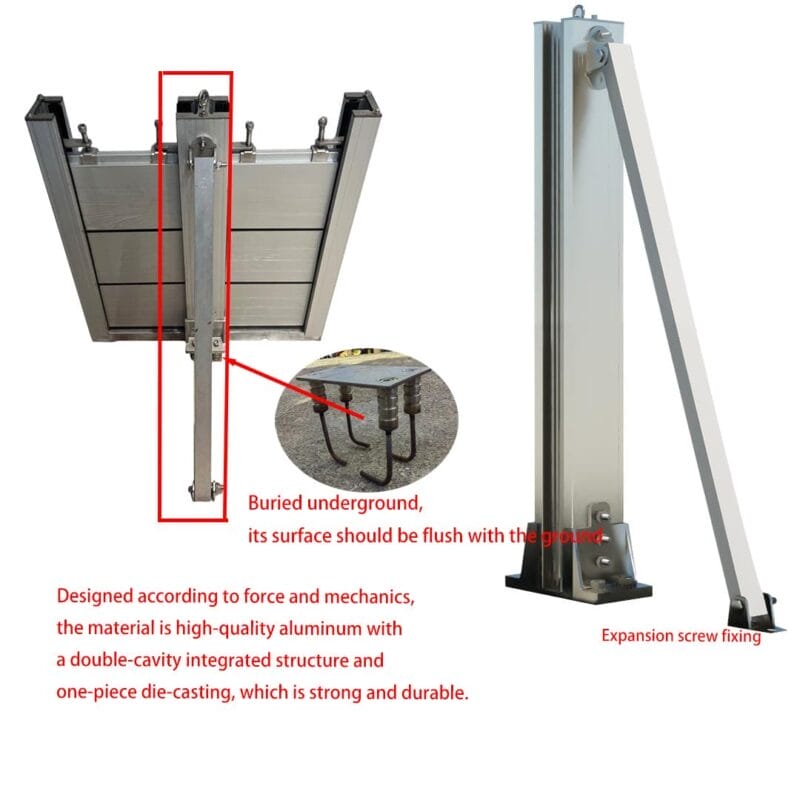

Posts for wider runs
Intermediate supports divide longer barriers into sections. Spacing and bracing are determined for the project.
Configured for higher protection
Substantial aluminum panels, posts and supports are specified as one system for projects requiring protection heights up to 78.74 in.
PROJECT VIDEO
See a completed Eudore project.

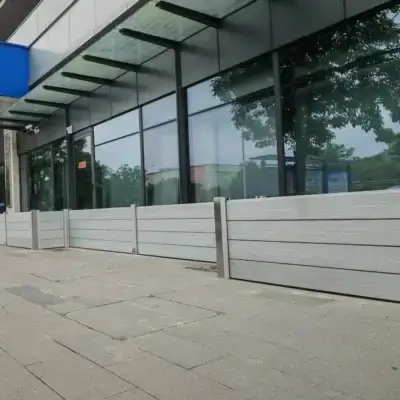

See Eudore aluminum flood barriers installed on site. This completed project gives you a firsthand look at the finished system, with panels, posts and supports working together as a continuous flood barrier.
- Real project footage of the installed system.
- See the finished panels, posts and supporting structure.
- A closer look at Eudore beyond the product drawings.

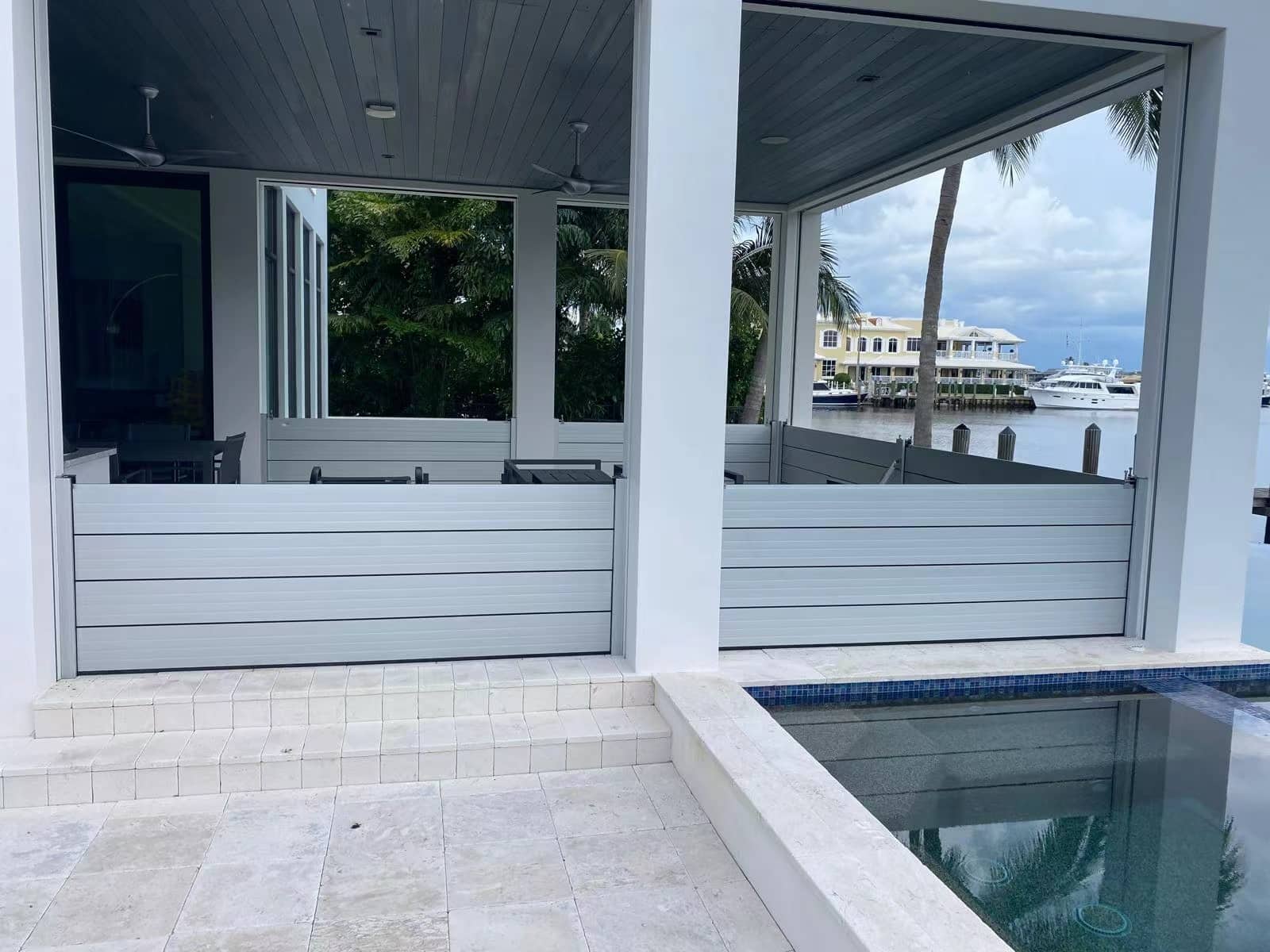

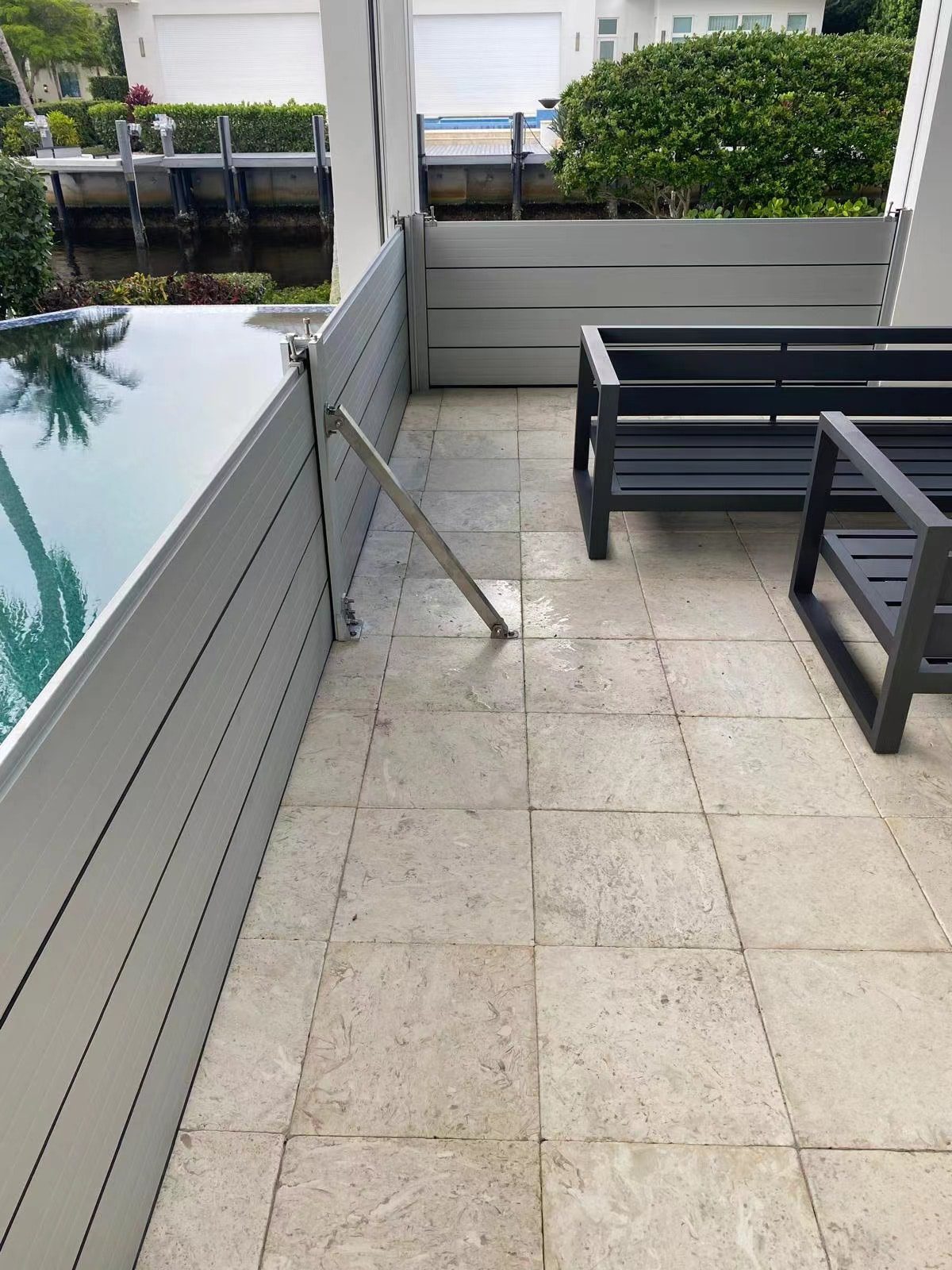

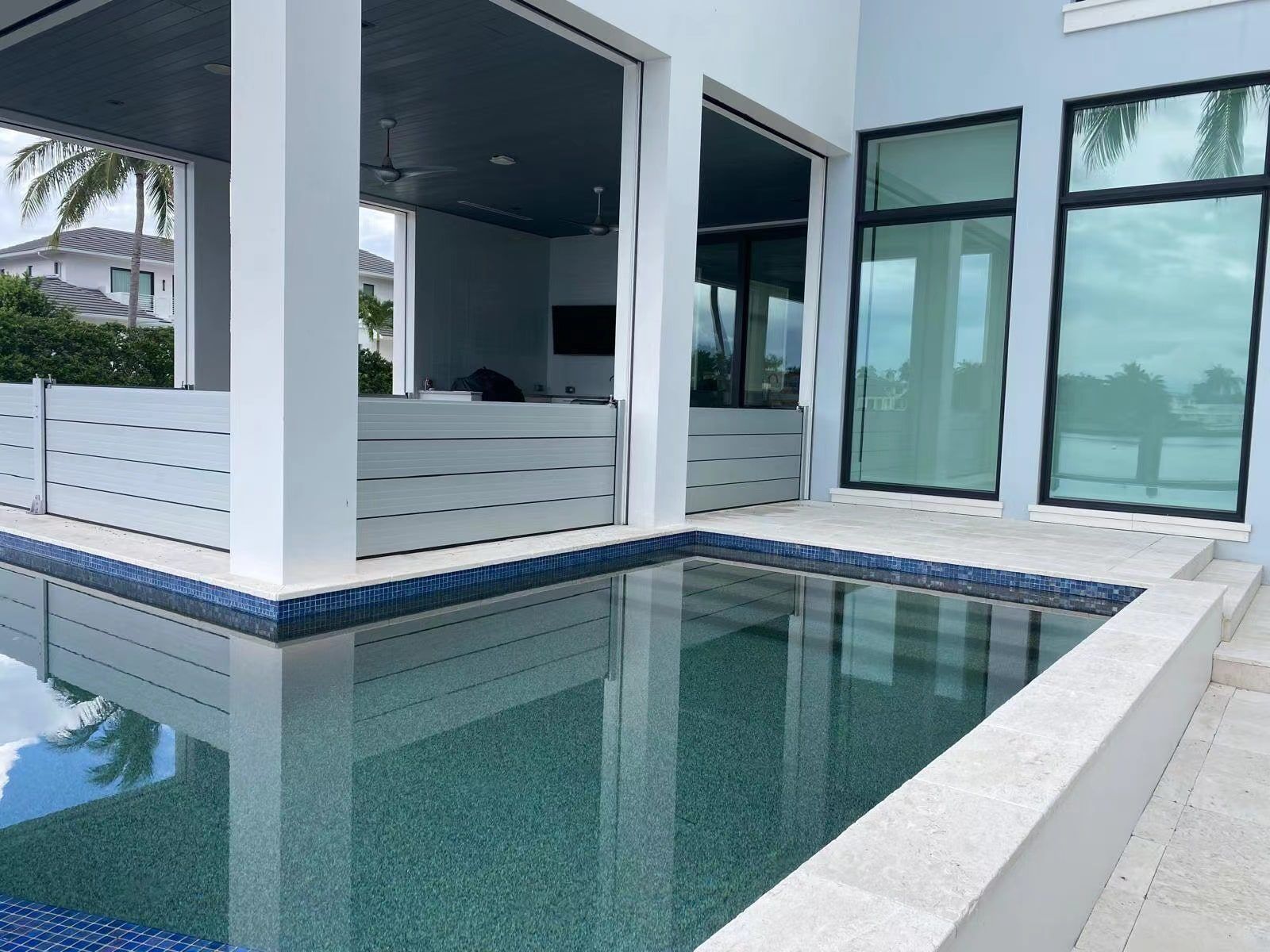

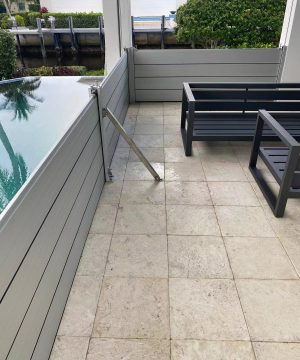

A REAL PROJECT · 55.12 IN PROTECTION
A continuous flood boundary. A modular aluminum system.
This completed riverside project is 55.12 in high, not 78.74 in. It shows how panels, repeated posts and rear braces can form a longer barrier when specified for the site.

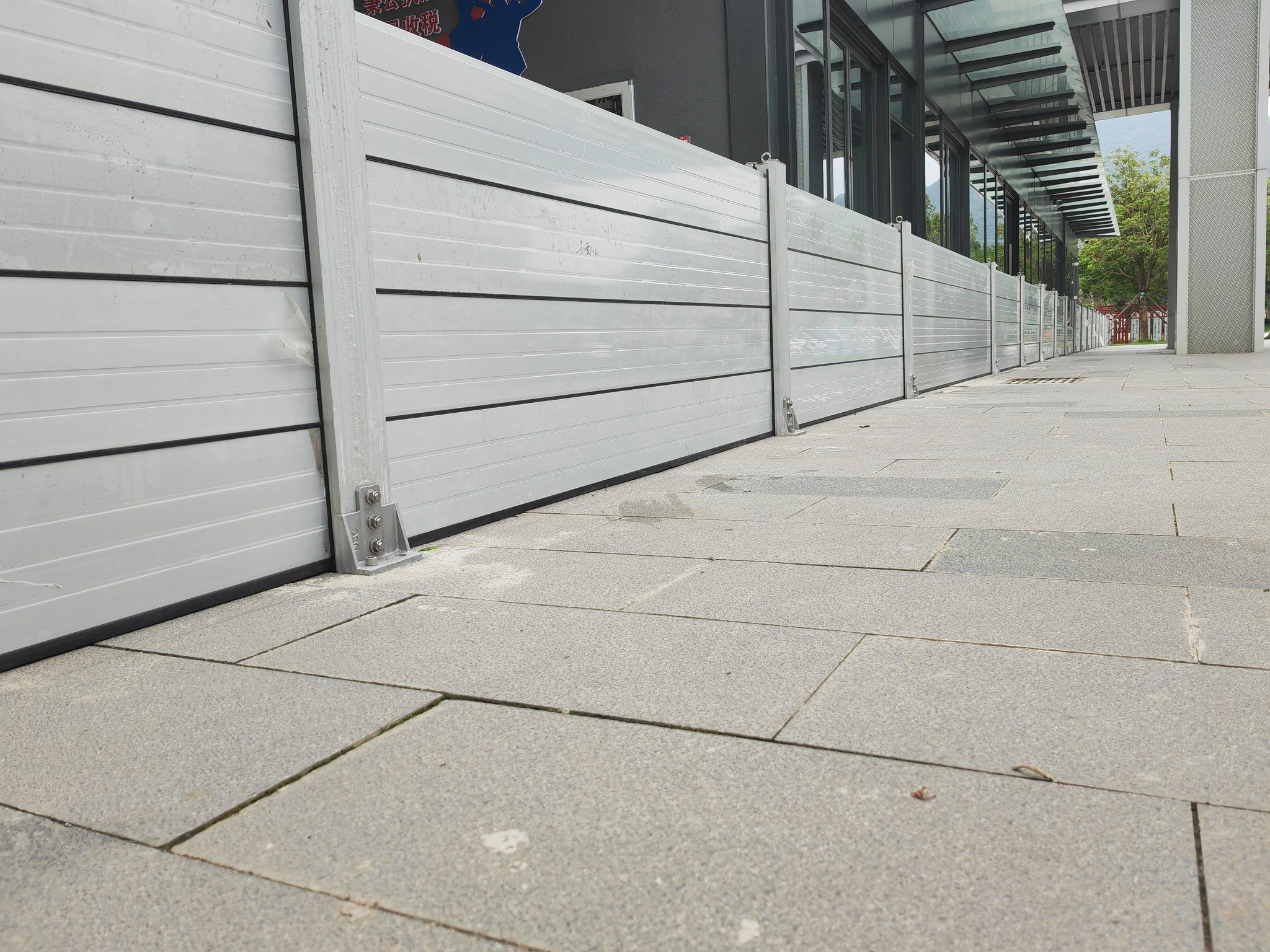

- Stacked panels form the protective boundary.
- Repeated posts divide the run into manageable sections.
- Braces support the installed arrangement where specified.
Reported DSC-095 Test Results
Three conditions from the commissioned report are summarized here for quick review. Open the original PDF above for the complete test method, sample details and limitations.
Final protection height and performance require opening-specific configuration, suitable structural conditions and correct installation.
Reported Results at Three Test Heights
Report BB1JZL-20250032 · Sample WBa20250423002a1 · 6063-T6 · 7,000 × 1,200 × 40 mm
The report concludes that the recorded column and water-deflector stresses were below 215 MPa and the recorded column deflections were below 5 mm for the tested sample and conditions. Opening-specific engineering and installation remain necessary.
FACTORY-DIRECT

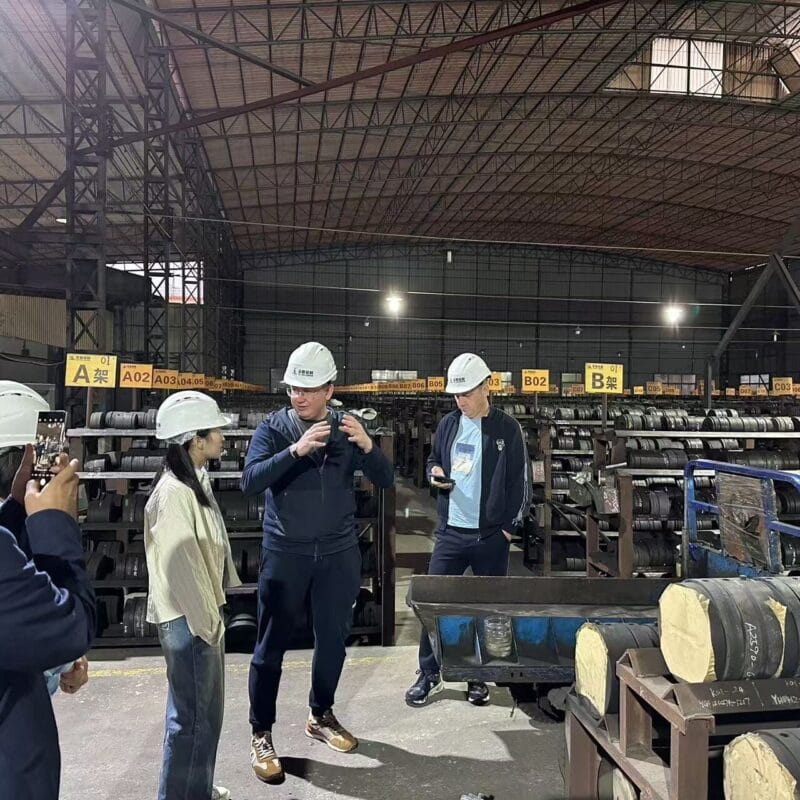

See Where Eudore Flood Barriers Are Made
Eudore works directly with the Shenzhen manufacturing team for aluminum processing, custom dimensions, quality control, lead times and project-specific support.
Aluminum Flood Barriers Factory Showcase
See the manufacturing environment, finished barrier inventory and production workflow behind the made-to-order system.
Open on YouTube ↗
Precision Cutting & Custom Flood Barrier Sizing
Watch aluminum components being processed for the custom dimensions required by residential and commercial openings.
Open on YouTube ↗
*Where applicable, based on order specifications. CE certification, RoHS documentation and third-party test reports are available for review.
TECHNICAL RESOURCES
Review the details before you specify.
Published documents are a starting point for a project review. Read each report within its stated scope; the selected 55.12–78.74 in configuration still requires matching project information.
Technical specifications
Standard product specification sheet.
Open resource ↗ 02 / GUIDANCEInstallation manual
Post positioning, assembly and sealing guidance.
Open guide ↗ 03 / REPORTTest report
Published standard product test results and stated conditions.
Open report ↗ 04 / VIDEOInstallation video
Watch the standard system installation.
Watch video ↗ 05 / REFERENCEStructural calculations
Standard product engineering reference; project calculations must match the selected configuration.
Open resource ↗ 06 / REFERENCEProduct brochure
Standard product range and features.
Open resource ↗BEFORE YOU ORDER
Confirm the configuration for your site.
Use the purchase options above only after the required height, opening dimensions and installation approach have been confirmed. If the available options do not match your project, request a review before ordering.
Height and clear width
Share your target protection height, clear opening width and the number of openings or total boundary length.
Walls, floor and access
Send clear photos of mounting surfaces and the surrounding area. Include steps, uneven ground and any limits on space for supports.
Panels, posts and fixings
Confirm the specified supports, fixing arrangement and supplied components against the final quote. Do not assume every item pictured is included.
Have your measurements and site photos ready.
PROJECT QUESTIONS
Plan your 55.12–78.74 in flood barrier.
These answers explain what the page can show. Final dimensions, loading, fixing and support layout must match the approved project configuration.
01Can the barrier be configured to 78.74 inches high?+
Yes. A 78.74 in protection height is reviewed as a complete panel, post, fixing and support arrangement for the individual site. The final configuration follows the approved project information.
02Is the riverside project shown here 78.74 inches high?+
No. The riverside project shown on this page is 55.12 in high. It illustrates the panels, posts and rear braces in a completed installation.
03Can it protect a long boundary or a wide entrance?+
Longer runs can be divided into sections with side posts, center posts and specified supports. The opening width, ground conditions and access route determine the layout.
04What support layout is required for a 78.74 in configuration?+
The required post spacing, base fixings and any braces depend on the design and site conditions. Leave adequate space behind the barrier for the approved support arrangement and panel handling.
05Can the panels be removed between flood events?+
The aluminum panel sections are designed to be installed when needed and removed for storage between events. Permanent posts and other specified fixing components remain in place.
06What information do you need for a quote?+
Share the clear width, target protection height, photos of the wall and floor, opening use, and any access or storage constraints. This lets Eudore review the appropriate configuration.
Tell us about your opening
Share the opening type, clear width, target flood height and location. Our team will review the details and recommend the right configuration.
Measure the clear opening width and target protection height. Include the jamb and floor condition in your photos.
